This resource gives detailed instructions (with illustrations) on how to install a wedge anchor properly. With wedge anchors, it is important to drill accurate hole sizes since these fasteners use friction to work. Find information on the recommended drill size and hole depth for wedge anchors of different sizes.

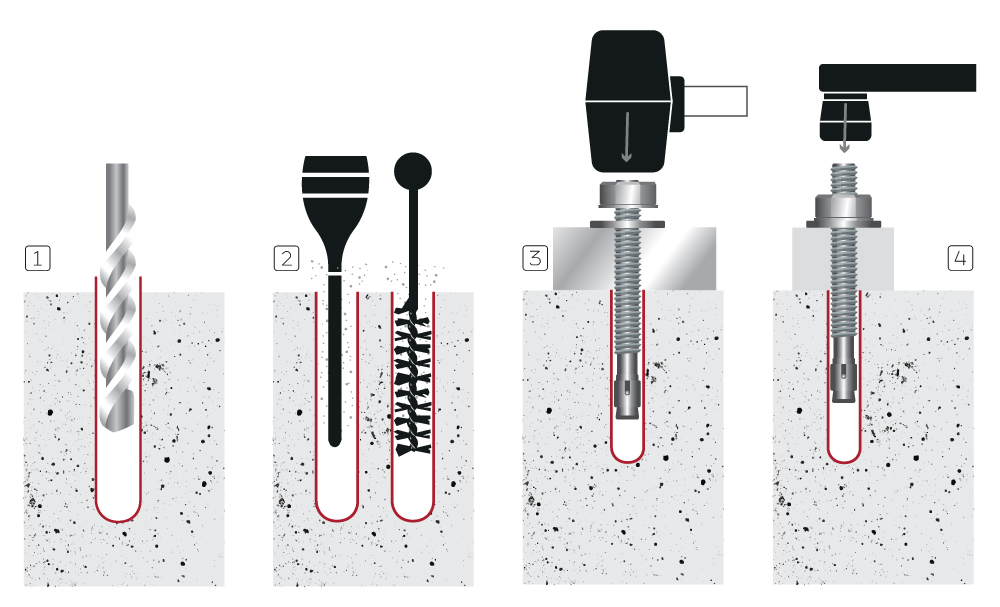

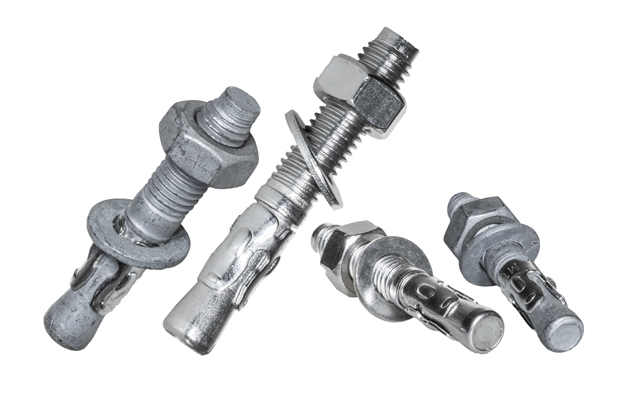

How To Install Wedge Anchor
1. Use the table below to determine the correct size drill bit and the correct hole depth.
2. Use air and a wire brush to thoroughly clear the hole of dush and any other material. Alternatively, clean the hole by moving the drill bit up and down, and suctioning the dust.
3. Using a hammer, tap the anchor into the hole until the washer contacts the item being fixed into the concrete.
4. With correct size socket or spanner tighten anchor to specified torque. Installation complete!
Wedge Anchor Recommended Drill Size and Hole Depth
| Diameter, mm | Length, mm | Drill size, mm | Min. Hole Depth, mm |
|---|---|---|---|
| 8 | 90 | 8 | 55 |
| 10 | 60 | 10 | 45 |
| 10 | 75 | 10 | 55 |
| 10 | 90 | 10 | 60 |
| 10 | 120 | 10 | 60 |
| 12 | 80 | 12 | 60 |
| 12 | 100 | 12 | 60 |
| 12 | 120 | 12 | 80 |
| 12 | 140 | 12 | 80 |
| 12 | 180 | 12 | 80 |
| 16 | 100 | 16 | 80 |
| 16 | 105 | 16 | 80 |
| 16 | 125 | 16 | 100 |
| 16 | 140 | 16 | 100 |
| 16 | 180 | 16 | 100 |
| 20 | 120 | 20 | 100 |
| 20 | 125 | 20 | 100 |
| 20 | 160 | 20 | 120 |
| 20 | 200 | 20 | 120 |
The data provided in this document is for general guidance only and should not be solely relied upon when working to stringent specifications. We recommend consulting with qualified experts regarding any technical queries. This may change without written notice
Version No: 241209
