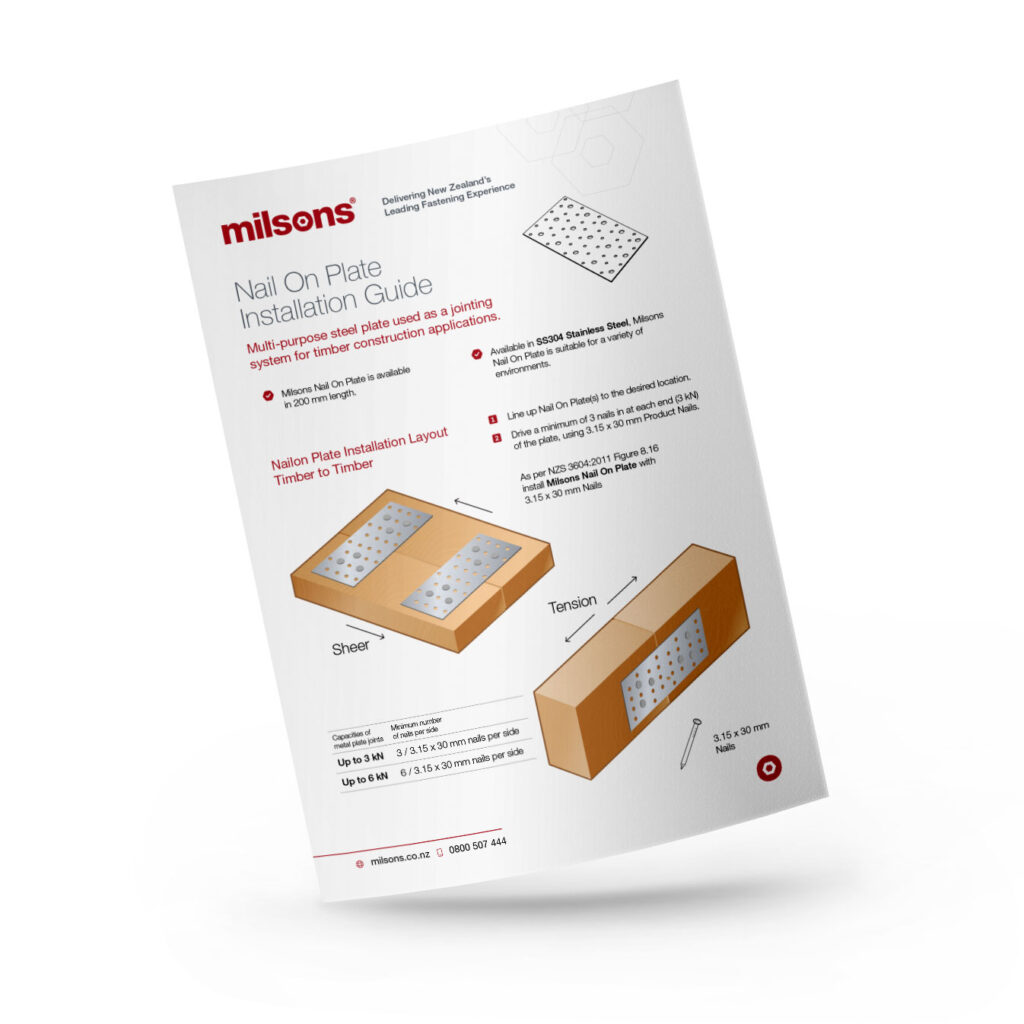

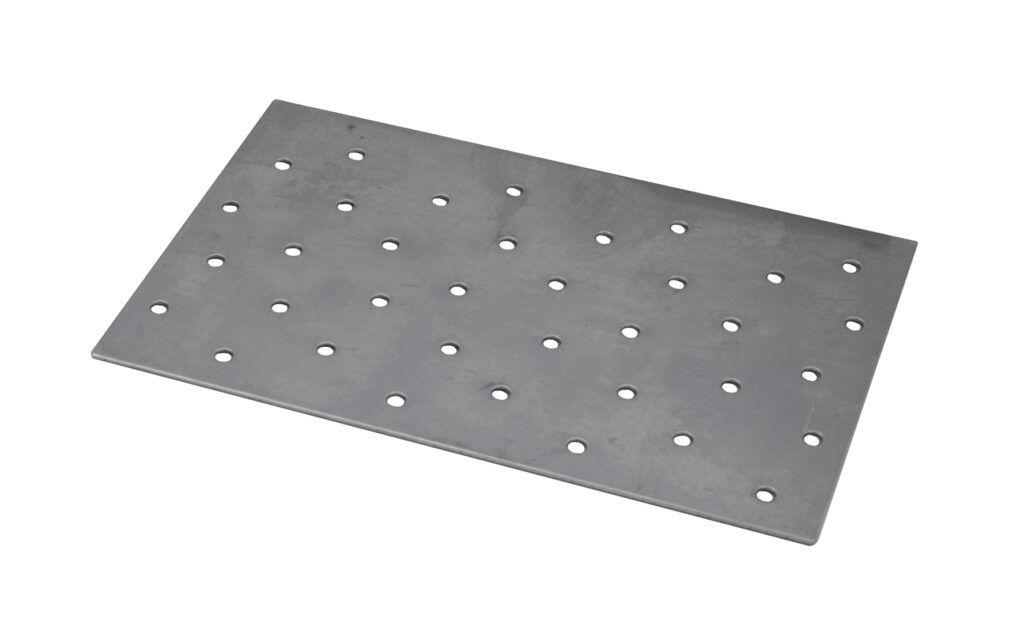

Multi-purpose steel plate used as a jointing system for timber construction applications.
- Milsons Nail On Plate is available in 200 mm length.
- Available in SS304 Stainless Steel, Milsons Nail On Plate is suitable for a variety of environments.

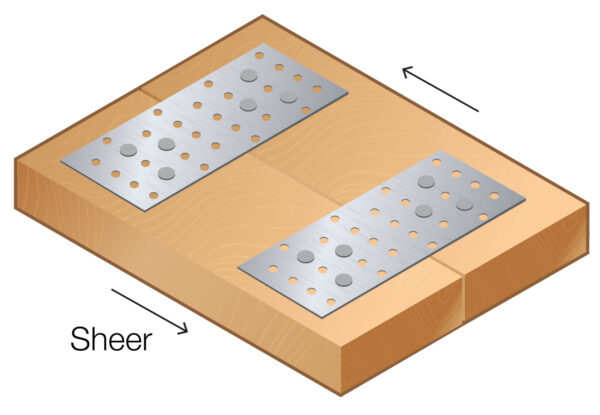

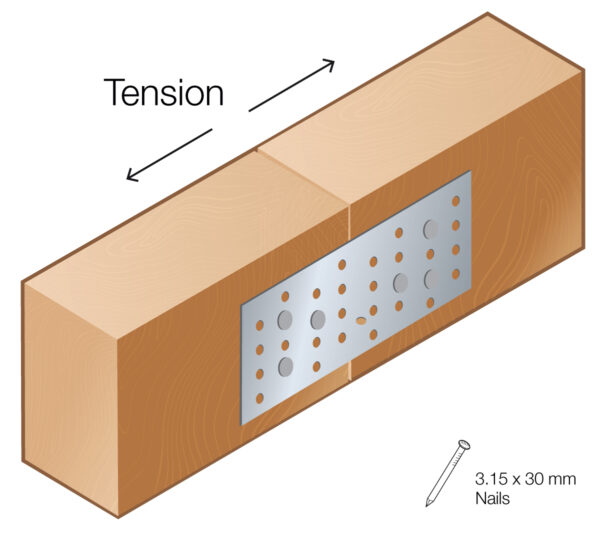

Nailon Plate Installation Layout
Timber to Timber
1. Line up Nail On Plate(s) to the desired location.
2. Drive a minimum of 3 nails in at each end (3 kN)of the plate, using 3.15 x 30 mm Product Nails.
As per NZS 3604:2011 Figure 8.16 install Milsons Nail On Plate with 3.15 x 30 mm Nails
| Capacities of metal plate joints | Minimum number of nails per side |
|---|---|
| Up to 3 kN | 3 / 3.15 x 30 mm nails per side |
| Up to 6 kN | 6 / 3.15 x 30 mm nails per side |
Durability
The following table provides an easy guide for selecting Milsons product with corrosion resistant finishes that will meet and exceed NZS 3604:2011 Table 4.1. Milsons Nail On Plate is available in SS304 Stainless Steel.
| Zone | Fixing Fastening | Environment | Product |
|---|---|---|---|
| All Zones | Nail Plates | CLOSED – Fully enclosed walls, floors and roof spaces | Zinc Coated Z275 |
| C-Nails and Bolts | Hot-Dipped Galvanised Steel | ||
| All other structural fixings | CLOSED | Carbon Steel-Zinc Coated | |
| Zones B and C | All subfloor fastenings more than 600 mm above the ground | SHELTERED – Vented 7000 mm2/m2 or Less | Hot-Dipped Galvanised Steel |
| EXPOSED – Vented MORE than 7000 mm2/m2 | 304 Stainless Steel | ||
| All subfloor fastenings within 600 mm of the ground | SHELTERED & EXPOSED | 304 Stainless Steel | |
| All other structural fixings | SHELTERED | Hot-Dipped Galvanised Steel | |
| All other structural fixings | EXPOSED | 304 Stainless Steel | |
| Zone D | All structural fixings | SHELTERED & EXPOSED | 304 Stainless Steel |
The data provided in this document is for general guidance only and should not be solely relied upon when working to stringent specifications. We recommend consulting with qualified experts regarding any technical queries. This may change without written notice
Version No: 250915
